HUSQVARNA® VIKING® Interchangeable Dual Feed Foot

sku 920219096
HUSQVARNA® VIKING® Interchangeable Dual Feed Foot
HUSQVARNA® VIKING® Interchangeable Dual Feed Foot
HUSQVARNA® VIKING® Interchangeable Dual Feed Foot
HUSQVARNA® VIKING® Interchangeable Dual Feed Foot -- Product Image
HUSQVARNA® VIKING® Interchangeable Dual Feed Foot -- Product Image
HUSQVARNA® VIKING® Interchangeable Dual Feed Foot HUSQVARNA® VIKING® Interchangeable Dual Feed Foot HUSQVARNA® VIKING® Interchangeable Dual Feed Foot HUSQVARNA® VIKING® Interchangeable Dual Feed Foot -- Product Image HUSQVARNA® VIKING® Interchangeable Dual Feed Foot -- Product Image
$147.71

$196.95

Now 25% off!

Find a Store

Free Shipping on orders over $35 (Excludes AK & HI). Most orders arrive in 3-5 business days. Free returns up to 30 days.

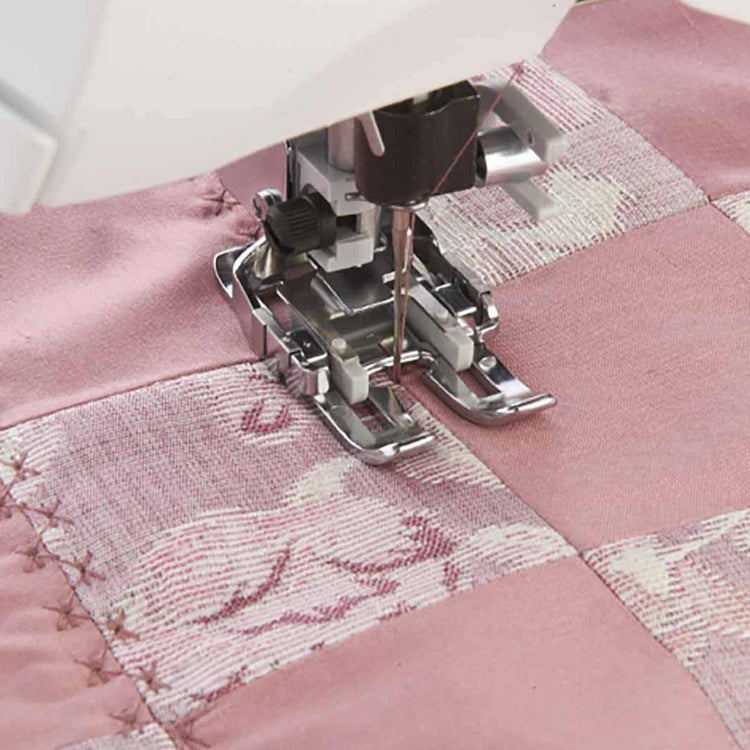

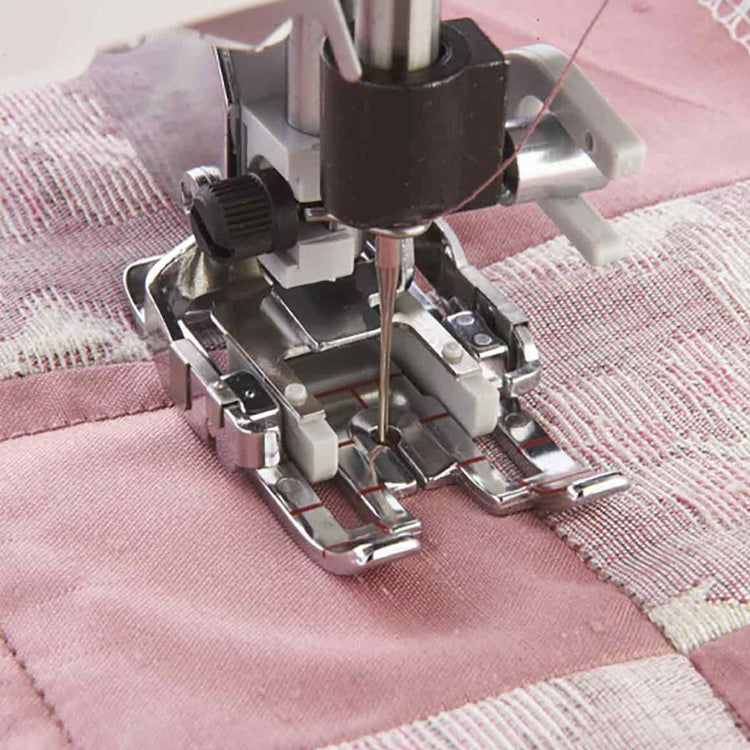

The Dual Feed Foot with changeable presser feet is designed to feed layers of fabric and/or batting evenly.
Details

The Dual Feed Foot with changeable presser feet is designed to feed layers of fabric and/or batting evenly. It is perfect for quilting, sewing velvet, stretch fabrics, imitation leathers and fabrics need precise pattern matching.



  • Snap on the Changeable Straight Stitch Foot.
  • Select the center needle straight stitch.
  • Adjust it up to a maximum stitch length of 6.
  • Snap on the Changeable Zigzag Foot and select stitches up to a maximum of 7mm wide and 6mm and long.



Compatible with HUSQVARNA® VIKING® machine groups 5,6,7.



*Not for EMERALD™ series, EDEN ROSE™ 250M, TRIBUTE™ 140M, and 145M, ONYX™SERIES

Specifications

How to use

  1. Remove the presser foot ankle by unscrewing the ankle screw.
  2. Place the Dual Feed Foot onto your machine from the back, positioning the fork over the needle clamp screw. Screw the Dual Feed Foot onto the presser foot bar with the presser foot ankle screw. Reduce presser foot pressure to 3.

Snap-on and remove the changeable presser foot

  1. With presser foot bar in the up position, place the presser foot under the Dual Feed Foot.
  2. Push the changeable foot upwards so that it snaps into place.
  3. To remove the changeable foot, push the front of the foot upwards until the foot snaps off.

How to attach the guide

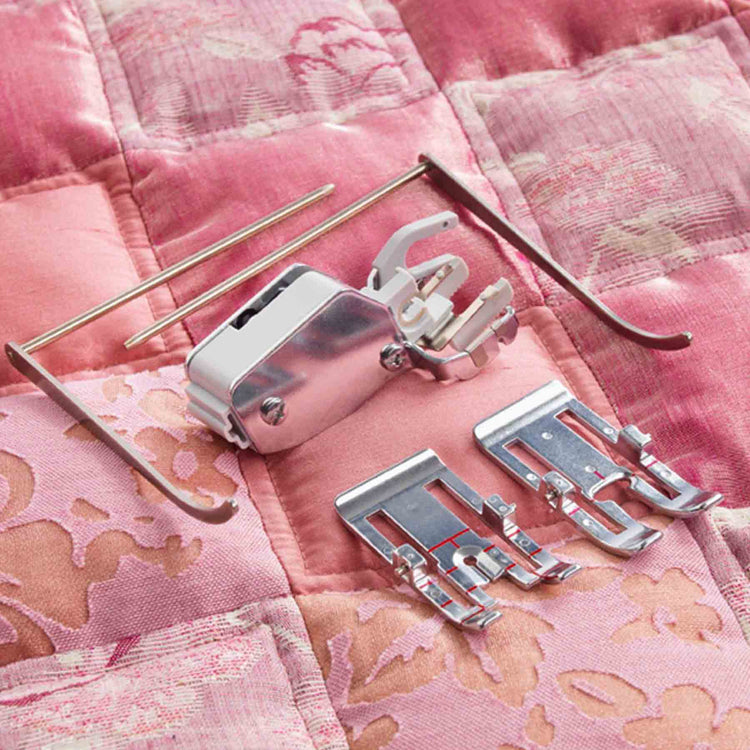

The two guides included with the Dual Feed Foot will help you sew parallel rows of stitching side by side as in channel quilting or tucking. There is one guide for the left side, and one for the right.

  1. Insert the guide into the hole in the back of the dual feed.
  2. Adjust the space between the foot and the guide by pulling it to the left or to the right.

Machine Compatibility

Frequently Asked Questions - HUSQVARNA VIKING Dual Feed Foot

The Interchangeable Dual Feed Foot is designed to feed layers of fabric and batting evenly, preventing shifting and puckering, which is essential for perfect quilting and sewing matching plaids or stripes.

This accessory is designed to fit specific HUSQVARNA VIKING sewing machines with a 9mm stitch width. Always check the official compatibility chart to ensure it will work with your model.

This system comes with interchangeable soles that snap onto the main foot holder, allowing you to switch between a standard sole and an open-toe sole for different quilting and sewing tasks.

No, the Interchangeable Dual Feed Foot is designed to easily attach to the presser foot ankle of compatible HUSQVARNA VIKING machines in place of the standard foot.

Absolutely. The dual feed action is also excellent for sewing tricky fabrics like velvet, vinyl, and laminates, as it prevents the layers from slipping and creating uneven stitches.
